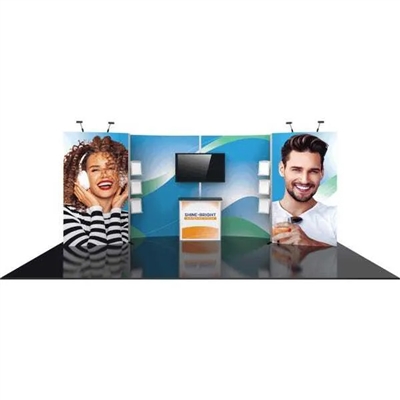

Download Setup InstructionsDisplay Dimensions:
229.25"W x 94.5"H x 42.88"D
Counter Dimension:39.38”w x 36.63”h x 15.75”d approx.
Max counter weight = 50 lbs / 23 kgs
Shipping dimensions - ships in 1 SCRATE
1 SCRATE: 59”l x 33”w x 57”h
Approximate shipping weight (entire kit): 531 lbs / 241 kgs
Medium monitor bracket holds 32-55” LCD
Max monitor mount weight = 50 lbs / 37 kgs
*LCD monitor not includedReconfigurable into 10'x10' inline display - additional components may be required
Information about lightsLumina 200 LED floodlight, straight arm and adjustable head, black finish, 19.5" from end to end
Download Graphic TemplateDownload Counter Graphic TemplateTotal visual area:Panel A and F: 95.43“w x 98.37”h
Panel B and E: 15.68”w x 98.37”h
Panel C and D: 73.06”w x 98.37”h
UV Graphic Panel G (cabinet door): 32.625"w x 94.375"h
Total visual area for counter:38.25“w x 36.187”h
Please consider obstructions and spaces created by the extrusions when designing graphics. Be sure to include a 2” bleed around the perimeter of panels A through F and a 0.5” bleed around the perimeter of panel G and the graphic of the counter.
Graphic material: Dye-sublimated fabric
Laminate cabinet with locking storage door and custom side/top laminate accent panel
Medium monitor bracket holds 26-40” LCD, maximum weight: 50lbs / 22.68 kgs
*LCD monitors not included
